Airpart Supply are an authorised distributor and stockist for Champion Aerospace Oil Filters

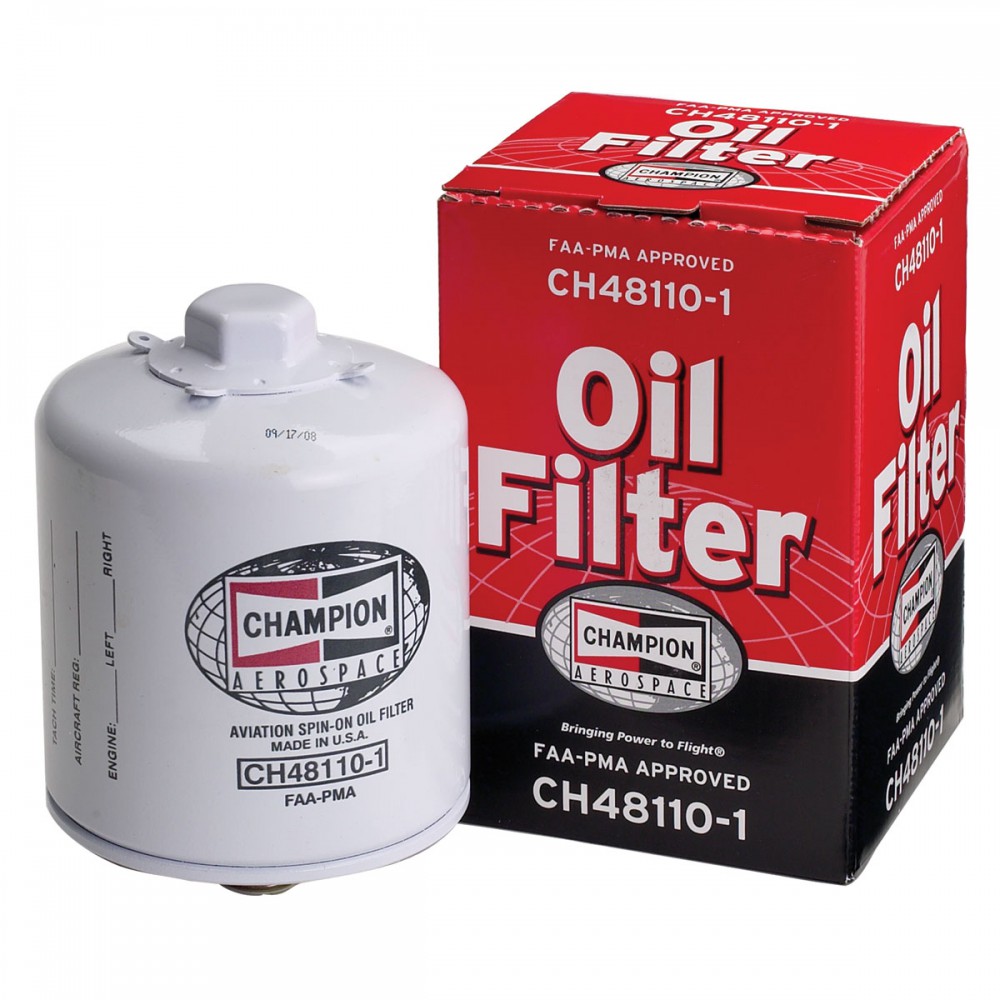

OIL FILTERS



Tests show that Champion High Performance Oil Filters protect your engine up to 30% more than competitive filters. In fact, in most cases competitive filters don’t even meet the minimum SAE ARP1400B standard for filtration efficiency.

Champion brand spin-on oil filters and element filters incorporate a semi-depth filter media. The filters combine the advantages of both surface and depth-type filtration: high filtering efficiency, controlled porosity for uniform flow, water resistance, and the resistance to impulse and flow fatigue.



FEATURES

  • Improved spring – replaces old “leaf” spring with an improved coil spring design.
  • Thicker-walled can – increased wall thickness for improved structural integrity.
  • Stronger centre tube – redesigned centre tube for added strength with collapse pressures more than double the current design.
  • New inlet design – changed four-hole design to an eight-hole design for approximately 30% greater inlet flow area.
  • Increased lid thickness – increased thickness of seaming lid by approximately 35%, which subsequently provided for higher burst and impulse testing.
  • Improved baseplate thread – replaces cut thread with an improved rolled thread, without affecting tolerances on the thread dimensions.
  • By-pass valve – meets TCM specifications.
SAE Spec Requirements- Champion oil filters meet all SAE (Society of Automobile Engineers) ARP 1400B Oil Filtration standards whereas the competition does not. This means champion filters clean oil better with higher filtration efficiency and maintain a higher burst pressure- 500PSI.

Structural Integrity- Champion Filters have a thicker-walled outer can and a stronger centre tube for added strength with collapse pressures more than double the competition filter.

Shorter Height- The can height of Champion filters is approx. ½” shorter than Tempest, with no impact to the filter media’s performance. This provides for an easier install process.

Industry Standard Gasket- Champion’s gaskets provide a better seal between the engine and filter that will never get stuck to the engine. Other filters may seize to the engine due to inferior gaskets.


 For pricing and availability click the relevant Champion Oil Filter part number in the table below:



Champion

Part No.



A



B



C



D

Thread

(SAE)

Dry Weight

Lbs./Kg.

CH48103-1

4.48” (11.4 cm)

0.43” (1.09 cm)

1.00” Hex (2.54 cm)

3.71” (9.4 cm)

13/16-16-UNS-2B

1.32lbs. (0.59kg)

CH48104-1

5.73” (14.6 cm)

0.43” (1.09 cm)

1.00” Hex (2.54 cm)

3.71” (9.4 cm)

13/16-16-UNS-2B

1.41lbs. (0.64kg)

CH48108-1

4.48” (11.4 cm)

0.43” (1.09 cm)

1.00” Hex (2.54 cm)

3.71” (9.4 cm)

3/4-16-UNF-2B

1.40lbs. (0.64kg)

CH48109-1

5.73” (14.6 cm)

0.43” (1.09 cm)

1.00” Hex (2.54 cm)

3.71” (9.4 cm)

3/4-16-UNF-2B

1.51lbs. (0.68kg)

CH48110-1

4.48” (11.4 cm)

0.43” (1.09 cm)

1.00” Hex (2.54 cm)

3.71” (9.4 cm)

3/4-16-UNF-2A

1.38lbs. (0.63kg)

CH48111-1

5.73” (14.6 cm)

0.43” (1.09 cm)

1.00” Hex (2.54 cm)

3.71” (9.4 cm)

3/4-16-UNF-2A

1.47lbs. (0.67kg)



Click here for the Champion Aerospace Catalogue (this will open in a new window to allow you to use the search function on our website).

More information about Champion Oil Filters can be found at the Champion Aerospace website https://www.championaerospace.com/products/oil-filters
